 My controller kit from ghurd		  New Topic  Reply to Topic
 Printer Friendly
Author Previous Topic Topic Next Topic

speo
Junior Member


Canada
114 Posts
Posted - 10/02/2008 :  19:36:17  Show Profile Send speo a Private Message  Reply with Quote
Hi guys,

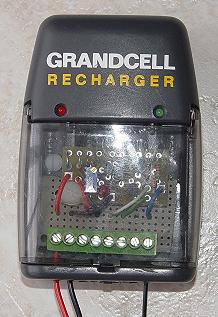

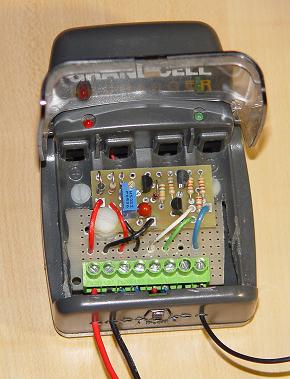

Here is a kit I received from ghurd. I assembled it and installed it in a box from an old 4 AA battery charger.

I liked the charger box because it already has two LEDs installed and it has a nice hinged transparent cover (to see the magic smoke inside )



The green connector:
1 - positive battery sensing
2 - negative battery sensing
3 - external dump LED - positive
4 - external dump LED - negative
5 - external battery LED - positive
6 - external battery LED - negative
7 - FET gate
8 - FET gate

If the external LEDs are not wanted, the 3,4,5,6 slots can drive additional FETs

This kit is amazing. It's so easy to adjust and it works so smooth. Kudos to ghurd for putting together such a nice regulator.

Speo

www.windpulse.com

fungus
Moderator



301 Posts
Posted - 10/02/2008 :  20:03:06  Show Profile Send fungus a Private Message  Reply with Quote
Nice :)
Go to Top of Page

gotwind
Forum Admin



United Kingdom
957 Posts
Posted - 10/02/2008 :  20:40:44  Show Profile Send gotwind a Private Message  Reply with Quote
Agreed.
Good re-use of old plastic, Ghurds controller is a great solution for our low power wind generators.


The Futures Green - Getwind of it.
Go to Top of Page

ghurd
Junior Member



USA
314 Posts
Posted - 13/02/2008 :  21:06:10  Show Profile Send ghurd a Private Message  Reply with Quote
I just saw this.

Nice job Speo!

If it needs expanded, the negative LED wires can be in the same connector hole.
G-
Go to Top of Page

speo
Junior Member



Canada
114 Posts
Posted - 14/02/2008 :  01:20:03  Show Profile Send speo a Private Message  Reply with Quote
Thanks, guys.

Speo
